Rocking Horse 33 Years In The Making

First off, I want to share some good news with everyone — in late August my wife Alyssa gave birth to our first child — a son named Bradley who came in at 10lbs 15oz and 23 inches long!  We’re both proud parents and my wife and the baby are both doing well. With the new baby, work, and teaching this semester,  I haven’t had as much time to blog as I would like. As things are calming down and and the cold weather sets in I’ll get some more time at the computer and will catch everyone up on what projects I’ve been working on. In the meantime I wanted to share with you one of the few family heirlooms I have — in this case my old rocking horse.

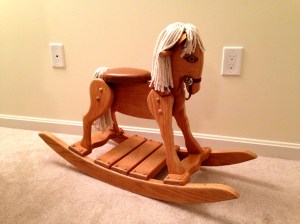

Oak Rocking Horse
Oak Rocking Horse

I’m convinced that Woodworking skills and appreciation for woodwork are hereditary to some degree. When I was a child my Dad — William D. Rainford — made a very nice rocking horse for me. The horse was constructed from solid oak and was just about complete — the woodworking was done, the seat was on there, but the horse lacked his eyes, mane and tail. The horse worked great and as a child I fondly remember riding on it.

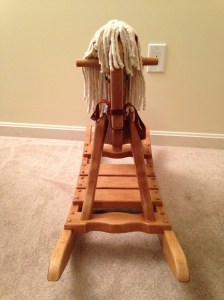

Front View of Oak Rocking Horse
Front View of Oak Rocking Horse

With the impending birth of my son I bugged Dad to finish off the horse, teasing him that he had 33 years to finish it — that’s how old I am right now. I’m happy to report that my Dad came through and finished the horse off properly — he now has his eyes (which we are all still amazed that he had and was able to find after all of these years), a nice mane, leather ears and even a bridle.

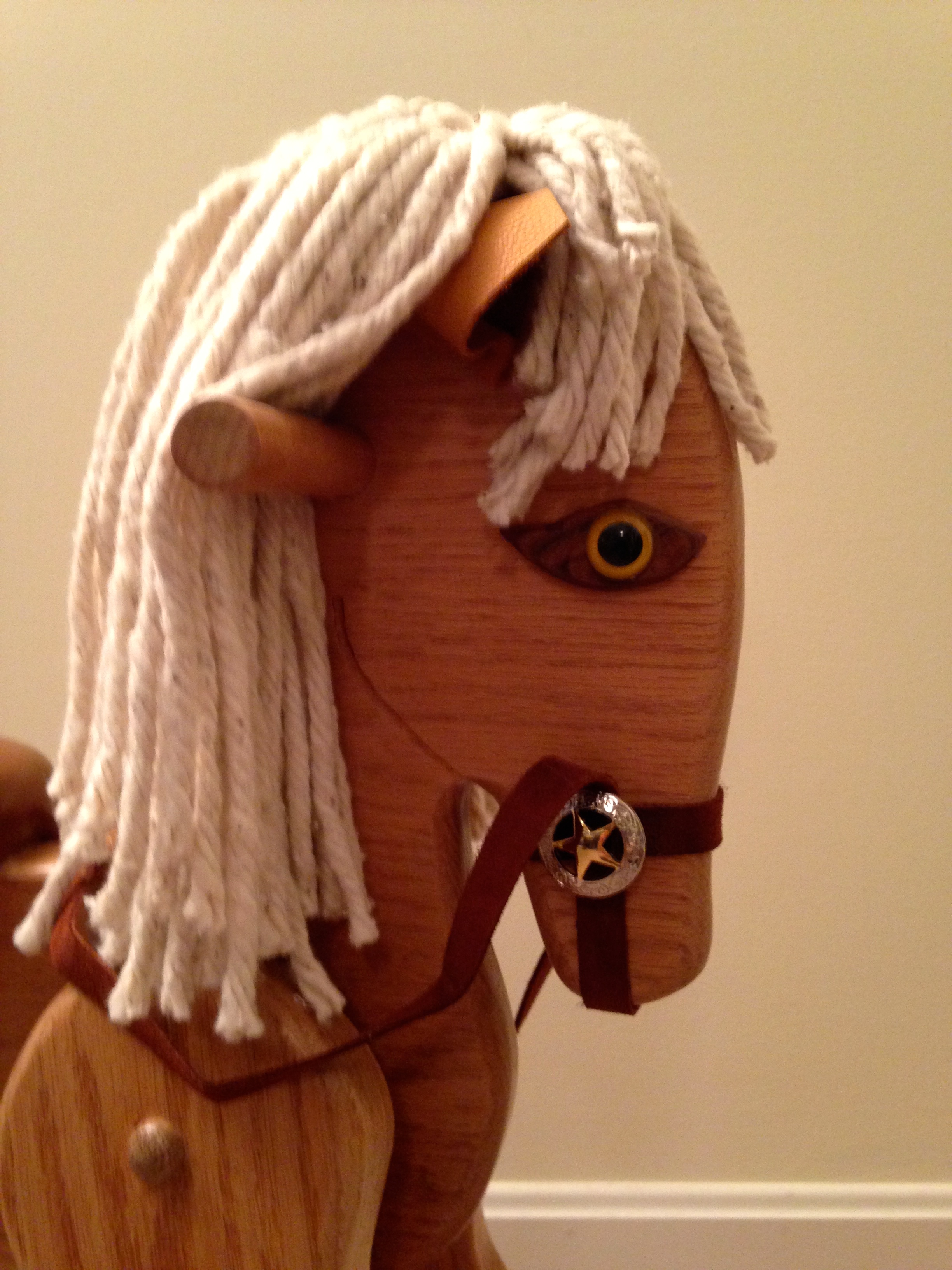

Close Up Of Rocking Horse Head
Close Up Of Rocking Horse Head

I look forward to when Bradley is old enough to ride it. Right now it’s keeping watch over the other toys in Bradley’s room. Speaking of Bradley’s room and finishing off projects, I need to finish building the crib for Bradley before he outgrows his bassinet and starts giving me a hard time for not finishing off that project.

Take care,
-Bill

Treenails, Trunnels, Pins and Pegs

Treenails, Trunnels, Pins and Pegs — all terms used to describe the wooden nail-like fastener used in timber frame construction. I needed to make a large number of them for an upcoming project and thought you might also enjoy seeing what it takes to make these deceptively simple looking pins.

White Oak and Hard Maple stock ripped, thickness planed and jointed
(1) White Oak and Hard Maple stock ripped, thickness planed and jointed

Where did all those names come from?

Like most things that predate modern recorded history I’ve read many conflicting theories on where these terms came from, so what I relay here is based on my own experiences in this field; your mileage may vary. Timber framing dates back thousands of years and can be found in early civilizations around the world in many different forms. What all these structures had in common was the joining of heavy timbers using traditional joinery and large mortise an tenon joints that were pinned together using large wood fasteners.

These fasteners are known by a lot of colloquial names, the most common of which I describe in this post. Most literally treenails (or trenails in some places) is the term for nails made from a tree. Trunnels is derived from the pronunciation of treenails and at times reserved for larger treenails used in very large buildings or ships, sometimes even wedged so they do not back out. Pegs tends to be a more modern term for treenails and pins tends to be used for smaller scale work though many timber framers I know today use it regularly. Having said all this I’ve heard all of these terms used inter-changeably at times by both novices and seasoned professionals, so feel free to use the term(s) that best suit your work and locale.

The bottom line is ‘a pin by any other name will hold your building together just as well.‘ (provided you heed my tips below 😉 )

Stock ripped down into square blanks
(2) Stock ripped down into square blanks

How do you go about making these pins?

Traditionally pins were split out of green wood, shaved down with a draw knife and shave horse and allowed to season. Then touched up again when dry. Since I have to make a few hundred of these, being a practical modern joiner I will make use of my table saw and some high quality kiln dried lumber. Most of the stresses in a timber frame are carried by the joints and not the pins, and white oak is very resistant to shearing forces so I am not worried about the wood not being split out for this usage. (I’m building a square rule, late 19th century style frame from milled eastern white pine, so by that point the pins likely were made the same way I go about it)

For the scale of timber framed buildings I generally work on — homes, barns and sheds, I’m usually using a 7/8″ ships auger bit to drill holes for pins. Most tenons I work with are generally 1.5″-2″ thick eastern white pine and based on experience and reference tables I’ve found this size to work well for me.

I learned to timber frame while at NBSS and with that my framing has a proclivity for historic precedents. The historic buildings I work on all had octagoned pegs which worked well for hundreds of years and can be made more easily when compared to the expensive turned pegs you see some modern supply houses offer for upwards of $2 each. For a draw bored joint, I feel the octagon pegs look better and hold better compared to the CNC turned pins. (More on that later)

Making octagons out of the square blanks
(3) Making octagons out of the square blanks

1.) I start off by milling down my rough 4/4 white oak stock to be 7/8″ thick, then I joint an edge on each board (See photo 1). I then crosscut each board to be about 30-3/8″ long. (Each of these boards should yield 3 sets of 10″ long pegs)

2.) Next I rip each of those boards into 7/8″ square sticks (See photo 2)

3.) Tilt the blade on your table to 45″ and turn each of those square blanks into an octagon. The use of feather-boards will help you be consistent. (See photo 3)

Chopping several blanks at a time on the chop saw using a stop block
(4) Chopping several blanks at a time on the chop saw using a stop block

4.) I set a stop block on the chop saw at 10″ and gang chop (cut several at a time) for the sake of efficiency (See photo 4)

248 Oak Treenails and 166 Hard Maple Try Pins
(5) 248 Oak Treenails and 166 Hard Maple Try Pins

5.) At this point you’ll quickly see how many pin blanks it takes to make even a modest building. (In this case a 12’x24′ large shed/small barn) (See photo 5)

Using the hewing bench, carpenter's axe and timber framing chisel to taper the ends of each pin
(6) Using the hewing bench, carpenter’s axe and timber framing chisel to taper the ends of each pin

6.) Now it’s over to the hewing bench to taper the leading ends of the pin blanks. I usually rough off the wood with my capenter’s axe and touch things up with a timber framing chisel. I find it helps to get the cut started with the tool and bang them both (peg and tool) in unison on the hewing bench. The downward momentum drives the tool through the wood with a minimal expenditure of energy — important when you have a few hundred of these to complete.

Completed pins
(7) Completed pins

7.) I usually taper the first 2″ or so of the pin. You do not need to be overly concerned with trying to make the pins look like a sharpened pencil. You just need to knock off the corners to help guide the pin through the draw-bored joint.  Anything beyond that is to suit the design aesthetic you are going for. (Some folks will want to cut the ends off a pin in the house, so all the more reason to only do what you need to do with them)

Foreground -- 3/4" Hard Maple Try Pins; Background 7/8" White Oak Treenails
(8) Foreground — 3/4″ Hard Maple Try Pins; Background 7/8″ White Oak Treenails

8.) Sit back and enjoy your work. Take a deep breath and repeat steps 1-7 all over again to make try pins. Try pins are slightly thinner pins used when test fitting your timber frame. I make them from hard maple for two reasons — I can visually differentiate them from the oak and the smooth hard maple is easily removed when the test fitting is complete. For this frame using 7/8″ Oak pins I make the try pins from 3/4″ hard maple stock. They are made the same way as their larger brethren.

Full buckets of pins
Full buckets of pins

Why are they octagons?

By making a 7/8″ octagon pin and driving it into a 7/8″ round hole the corners will bite into the wood and keep the the pin securely seated.  (The diagonals across the 7/8″ octagon are slightly longer than 7/8″.) This is why you want to use smaller try-pins during test fitting, this way you are not deforming/stretching the holes before the frame is raised.

Driving in the pegs
Driving in the pegs

Tips for a high quality timber framing pin:

  • Use kiln dried pins with a green wood frame. Use green pins with a dried frame
  • I use most often use White Oak pins with green Eastern White Pine frames
  • I use Hard Maple Try Pins during test fittings (try pins should be 1/8″ smaller than your final pins)
  • Octagon your pin stock so that it properly bites into the joint
  • Taper the ends of your pins so they will easily enter the draw bored joints
  • Don’t stress too much about the tapering
  • Avoid the machine turned pins — I dislike the look, the cost (~$2 each), holding power, fact that they are not historical etc
Many pegs in a timber frame
Many pegs in a timber frame

Where can I learn more about timber framing?

  • Join the Timber Framer’s Guild (www.tfguild.org) and read the many good publications they have
  • Read any of the books by Jack Sobon, Ted Benson or Ed Levin on the topic of Timber Framing
  • Take a class in timber framing at The North Bennet Street School (with Rich Friberg or me), or at the Heartwood School in Western MA

The next time you are in a barn or timber framed building I hope that you will take a moment to examine the pins holding the joinery together.

-Bill

Hewing Bench Revisited (Already)

After living with my new hewing bench for a few weeks I finally got around to using the other half of the log. I’m glad things worked out this way as I made some modest improvements based on our time together.

Original bench on the right, revised model on the left
Original bench on the right, revised model on the left

The original bench was fairly solid — it could hold me standing on it and didn’t bounce around when I would strike it in a downward motion — but when I’d do something heavy and lateral I could feel what felt like a tiny bit of flex in the the legs.

Turning thicker legs
Turning thicker legs

At the time I ripped down a 2×3 to make the legs roughly sized to the 1″ ship auger bit which was the largest I had on hand, but I worried about the 1-1/8″ legs being too spindly. The mental image of the legs being too spindly haunted me, so for this second time out I decided to rectify that issue.

Removing the bark from the half log
Removing the bark from the half log

Improvements:

  • Thicker legs (1-1/2″ square) with a more pronounced shoulders (this way the legs don’t add to any unnecessary wedging/splitting pressure and no matter how much hammering takes place on top of the bench the legs are maxed out in how deep they will go into the top of the bench)
  • Legs splayed in both directions to be that much more stable
Leveling the legs
Leveling the legs

Beyond the modest improvements called out above, I otherwise built it the same way as the first hewing bench. (Wedged tenons, wax sealed end grain, leveled legs etc)

Completed benches. They can also work well as a pair of saw horses.
Completed benches. They can also work well as a pair of saw horses.

The Verdict:
The new bench is rock solid and will be a workhorse in the shop. The new legs are nice and stiff. Having a pair of these benches in the shop has already come in handy as you’ll see in the next post.

Take care,
-Bill

The Humble Hewing Bench

If you’ve watched Roy Underhill on the Woodwright’s Shop with any regularity then no doubt you’ve seen him using a hewing bench. It’s a great little bench made from half a log on 4 modest legs.  Roy’s used it for hewing, trimming, holding, sitting and many other common shop uses. It’s a project you can complete in an afternoon and will serve you well for many years in the shop.

Why would anyone really want this rough little bench?

If you do any sort of green woodworking it’s nice to have a place you can quickly hew a blank in the shop with a hatchet or similar small ax. When the ax hits the long grain of the bench it will not dig in the way it would if you were using the end grain of a stump or similar log section. (It also protects the reference surfaces of your real workbench) For tapering the end of treenails, splitting wood or roughing a green turning blank  it has been a priceless addition to the workshop.  It also makes a nice place to sit when people visit the shop. 😉

How do I make one of these benches?

Like any good Roy anecdote it starts with “First you find a tree….”

Splitting the oak log with metal wedges and a heavy leather faced mallet
Splitting the oak log with metal wedges and a heavy leather faced mallet

In this case I took a 12-15″ wide and 30″ long section of white oak from a large tree I recently felled in my yard. This tree was over 130 years old so the growth rings are nice and tight. Using metal wedges and a large leather faced mallet I use for my timber framing I split the log in half.

Watch to make sure the split runs the way you want down the log
Watch to make sure the split runs the way you want down the log

If the wedges alone cannot do the whole job of splitting for you, a froe can help it along.

Log split in half. You can clearly see the heartwood and the sapwood
Log split in half. You can clearly see the heartwood and the sapwood

After letting the slabs sit for a few days, it was time to de-bark the logs. If you don’t have a dedicated de-barking spud you can use any tough metal roughly chisel shaped tool or ax. In this case I used a 16lb post hold digger as shown below.

De-barking the log on the right. A metal post hole digging bar makes a good impromptu barking spud.
De-barking the log on the right. A metal post hole digging bar makes a good impromptu barking spud.

Back again in the shop I squared up the edges of the log with a hatchet. Being a green piece of wood this razor sharp ax made quick work of it.

Square up the edges with a hatchet
Square up the edges with a hatchet

I flipped the log over and removed any remaining bark.

Remove any remaining bark with the hatchet
Remove any remaining bark with the hatchet

Now time for the legs…

Ideally you want to split out some 1.5 inch diameter legs. In my case it was snowing and I didn’t have suitable wood on hand to do that, plus the largest ship auger bit I had on hand was 1″. I ripped down some nice straight grained 2x3s I had on hand to 1 1/4″ by 30″ long. I put them on the lathe and turned down the top 6″ to 1″ diameter. I then used a block plane to chamfer the edges.

Split or rip some leg stock. Drill holes with an auger and set your legs
Split or rip some leg stock. Drill holes with an auger and set your legs

Using a ship auger bit I bored a through hole into the log to allow the legs to splay a bit in both directions. After you set the first leg you’ll want to visually reference that first leg when drilling the next leg. Repeat this process for all 4 legs. After test fitting you’ll want to cut a kerf in the end of each tenon and re-install the legs. Make sure those kerfs are perpendicular to the grain of the log so you don’t split it with the wedges. Then glue and wedge the tenons. If you have ever built a windsor chair, this is a cruder version of the same process you’d use to fit the legs and level the feet.

Test fit on a level surface like a table saw
Test fit on a level surface like a table saw

With the legs installed I put the bench on a known level surface, in this case my table saw. Using a compass or similar tool mark higher up on the legs and cut them where you marked them. Then chamfer the ends of the feet and you’re almost done.

Mark what you want to remove to reduce the height and level the feet
Mark what you want to remove to reduce the height and level the feet

Next I applied some end grain sealer (from Land Ark/Heritage Finishes) to reduce the likelihood of splitting in my heated shop. I also trimmed off the wedges and tenons.

Seal the end grain to reduce checking
Seal the end grain to reduce checking

Now the bench is read for use in the shop. This bench, with it’s delicate looking legs, can hold me standing on it, so it should have no problem handling my in shop hewing needs.

Trim the leg stumps and the wedges
Trim the leg stumps and the wedges

Shown here is a Gransfors Bruks hand made Swedish ax. This carpenter’s hatchet is my goto ax for small trimming work and is sharpened to the point of being able to shave with it. The poll (the other business end) of this ax is hardened and can be used like a hammer. The handle is carefully tapered to fit in the hand and without looking you know when your hand is at the end of the handle. The notch under the bit allows you to use this ax much like a large chisel or plane and can yield impressive results. I used this to quickly level bits of the bench surface.

Enjoy your new hewing bench
Enjoy your new hewing bench

For short cash, a few tools and an afternoon in the shop this project is well worth the effort.

Take care,
-Bill

The thoughts one thinks while sawing a tree…

“The Oriental philosophy of contemplation involves forsaking all work; the European does his meditating while relaxing from work, but the American seems to think things out best while working. So the stone walls of New England may be thought of as monuments to the thoughts that occurred while they were being built, for those were the days of great decisions and profound planning. The thoughts one thinks while sawing a tree or making a stone wall are surprising. It is almost as if the mind becomes ashamed of the work the body is doing and starts doing a little “showing off” by itself. Lincoln said he did some of his deepest thinking while splitting rails. The plain farmer of two hundred years ago was weaving the fabric of a new nation and although there are no marble statues to his patriotism now, there are still his stone walls.” — Eric Sloane American Barns and Covered Bridges, 1954

Oak trees in the way of my barn...
Oak trees in the way of my barn…

I live on a heavily wooded street in New Hampshire that is lined with stone walls. As I pass them each day I think about what it took to clear all this land and build those walls. While most of the neighborhood is covered with second and third growth trees that were not actively managed, and new housing developments,  there are still a few pockets of small family farms with cleared farmland that looks like an idealistic painting of yesteryear and reminds us how this was all farmland about 100 years ago.  As the leaves changed this season I found it amusing to see tourists snapping pictures in front of some of these farms with their stone walls and weathered barns. In the book referenced above Sloane encouraged his readers to keep an eye out for early barns also made several interesting observations about stone walls. They were designed to keep animals in and not to keep humans out. When a wall fell over you had all the stones needed to rebuild it as opposed to a wooden fence that could have rotted away. I like the sense of inviting simplicity, using what you had on hand and building for the long term.

I recently set out to clear some trees out of my backyard and make room for a 12’x24′ timber framed shed/small barn to store extra wood and yard equipment. I’ve cleared about 35 trees so far, knocked off a bucket list item — taking down a full size tree with a felling axe, and still have a few more to go.

Felling oak trees
Felling oak trees

Safety Tip:

When working with large trees and high powered saw, make sure to ALWAYS wear the appropriate safety gear. Above you can see me wearing my steel toe boots, Kevlar chaps, eye protection, helmet with hearing protection and face shield and Kevlar reinforced gloves.  The chaps are like wearing an insulating blanket and rough to wear in the summer, but in cooler months they help you stay warm.

Limbing the tree
Limbing the tree

How do I cut down a larger tree?

I start by walking around the tree from all sides, sighting up at it to see what way it leans and were the mass is held by the limbs. I then mentally think about what direction I have enough space to drop to the tree without hitting houses, other trees, people or fences. With a plan in place I set about felling the tree. The process is much the same whether I use an axe or a chainsaw. I cut in at an angle on the side of the tree facing the way I want it to fall. I then make a horizontal cut to remove that wedge of wood. It should only be about 1/3 of the way through the tree. You want the intersection of those two cuts to land right on each other so you have a smooth hinging surface and a controlled drop.

90 Foot tall oak trees take a LOT of work to break down
90 Foot tall oak trees take a LOT of work to break down

I then come from behind the tree and make a horizontal cut until I leave about a 1.5″” wide hinge of wood that will help control the fall. This cut should be about 2″ above the bottom of the wedge cut (As seen in the photo below).  If done properly the tree should slowly start to fall over exactly where you want it. The tree shown here was a 90 foot tall oak, so when it hit the ground it shook the ground with an incredible thud — anything in it’s path will get crushed. When cutting a tree like this make sure you have a clear retreat path, usually 45 degree from the way you expected the tree to fall, that way you are not in the path of a falling or splitting tree or anything it kicks up.

Notch cut and hinge used for a controlled drop
Notch cut and hinge used for a controlled drop

Once on the ground I start removing all the limbs from the tree. I start with all the limbs that are not holding the trunk up off the ground to make room to better access the trunk. Any limbs or branches that are holding up the trunk are likely going to bind on your chainsaw if you are not careful. Being mindful of where the tree may move as you release that tension you can use a sharp axe to remove these limbs or careful wedge cuts that will not bind the saw. When doing this sort of work you need to be thinking about where the trunk is likely to fall after removing this limb, so you’ll want to mind your legs and feet.

Breaking down the de-limbed tree into firewood
Breaking down the de-limbed tree into firewood

Once the limbs are removed I break the tree trunk down into either firewood or whatever I am looking to use the wood for. These trees will be processed down into several projects — a few bowl blanks, a new base for my anvil, a few chopping benches for the shop, a stump to split firewood on and of course firewood. The incredible amount of brush and branches will be ground up into chips and distributed elsewhere on the property.

More Tips on cutting trees:

  • Try to cut tree during the colder months or winter as there will be less sap and thus less weight and cleaner cuts
  • Use plastic wedges when cutting a larger stump so that it does not bind on your saw’s bar and the wedge will not damage the chain
  • Use plastic or even larger metal wedges to help a cut tree (notched and ready to hinge) that is not falling. You can use a large mallet or beetle to drive in a wedge and help give it that little push it needs to start going over.
The result of a weekend of hard work
The result of a weekend of hard work

Even with all of the above information running through my head, and the sometimes backbreaking labor to break down these trees, there was still a lot of time to think. As I was doing the above work I was building the timber framed barn over and over again in my head, so by the time I actually get around to cutting the frame it will be like second nature. Unfortunately the snowy weather is creeping up on me fast, so it will be a race to see if I can get the shed put up this fall/winter or if it will get delayed until spring.

I’ll keep you posted.

Take care,
-Bill Rainford

2 Bay English Style Barn — Working with Ax and Adze

We recently posted on some square rule Timber Framing work. As a contrast, today we’ll take a look at an earlier form of timber framing known as ‘Scribe Rule’.  In contrast to ‘Square Rule’ timber framing with interchangeable parts,  pieces of a scribe rule timber frame are each scribed to one another — so each piece can only be used in a single location.

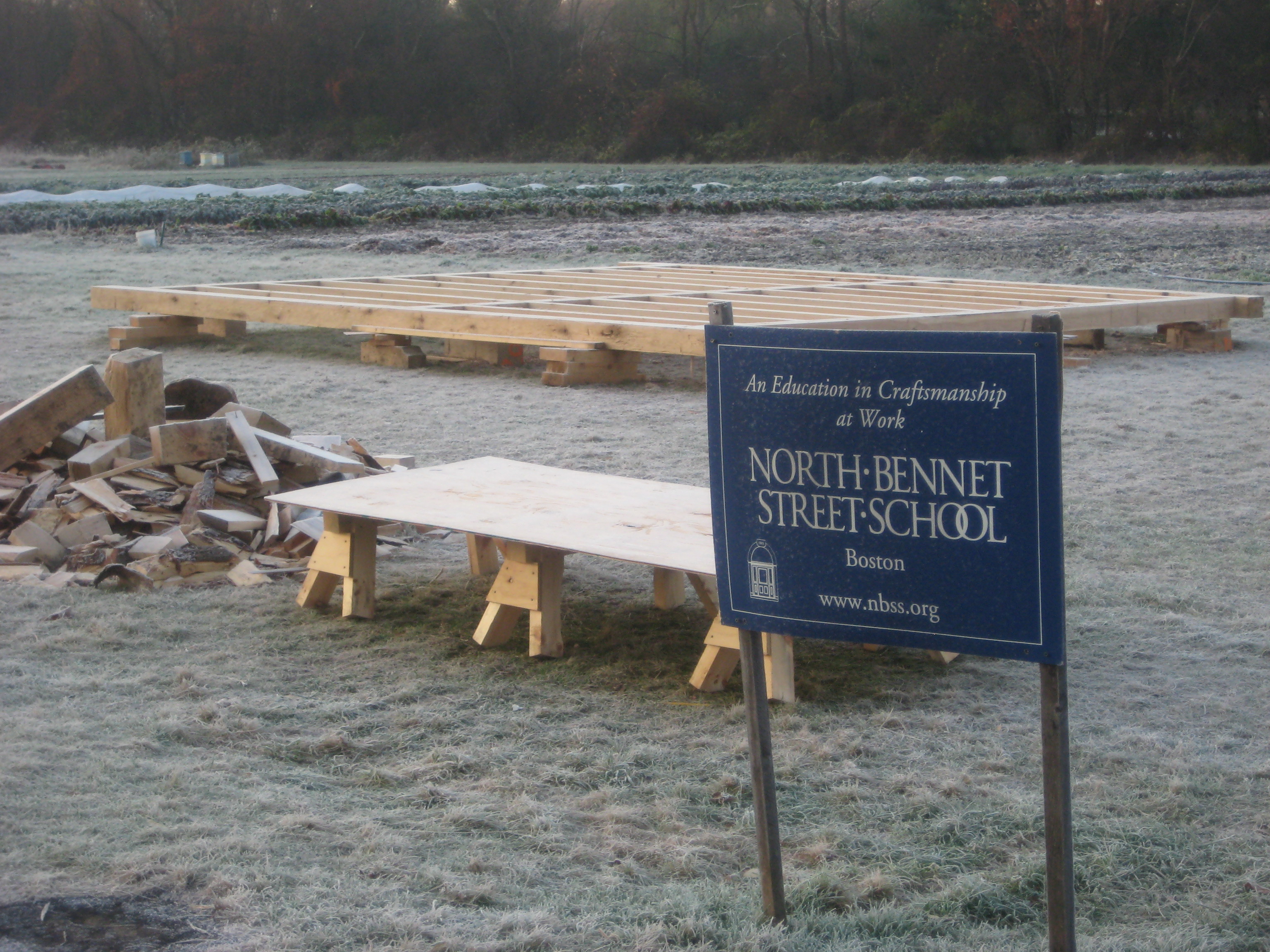

NBSS Sign in front of reconstructed floor system
NBSS Sign in front of reconstructed floor system

Back in 2009 as part of a North Bennet Street School Project at Brookwood Farm we worked on restoring the timber frame for a 2 bay English Style barn that was thought to be the oldest such barn in New England. Against the odds, the dendrochronology results were inconclusive which was disappointing, but based on what we can tell from what was left of the barn, even if it’s not the oldest it was/is still a notable barn both for some of the old world design and techniques used in its original construction.

The barn was found when a parks employee ran into the side of this barn (which was attached via ells to several other barns at Brookwood farm) with a tractor and uncovered posts that looked hand hewn. From there the school was eventually called in, and after careful evaluation and research by Steve O’Shaughnessy, Rich Friberg and others that this barn was indeed a rare bird and worth preserving. The class of 2009 and 2010 carefully dismantled the barn, cataloged the pieces and loaded it into a tractor trailer that now resides at the school (at the time of this writing). In or around May 2012 the restored/repaired frame should be raised again — I hope to post more on that if I am present for the barn raising.

The sills and floor structure of the barn were severely rotted, missing or replaced by the time we got to the barn, so in order to repair the barn we needed to start at the bottom and work our way up. This started with hand hewing new sills from oak.

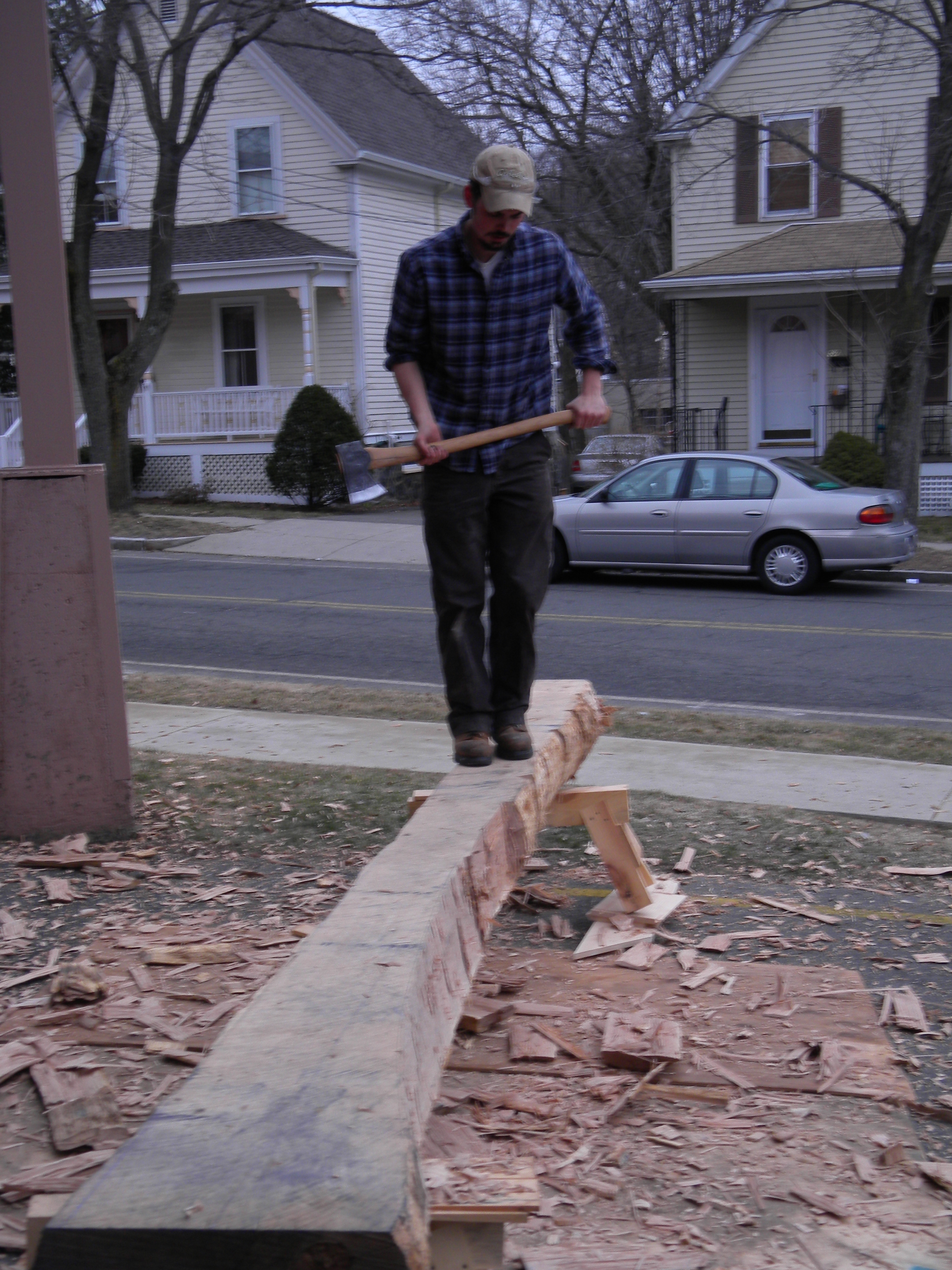

Bill notching in on the side of a timber.
Bill notching in on the side of a timber.

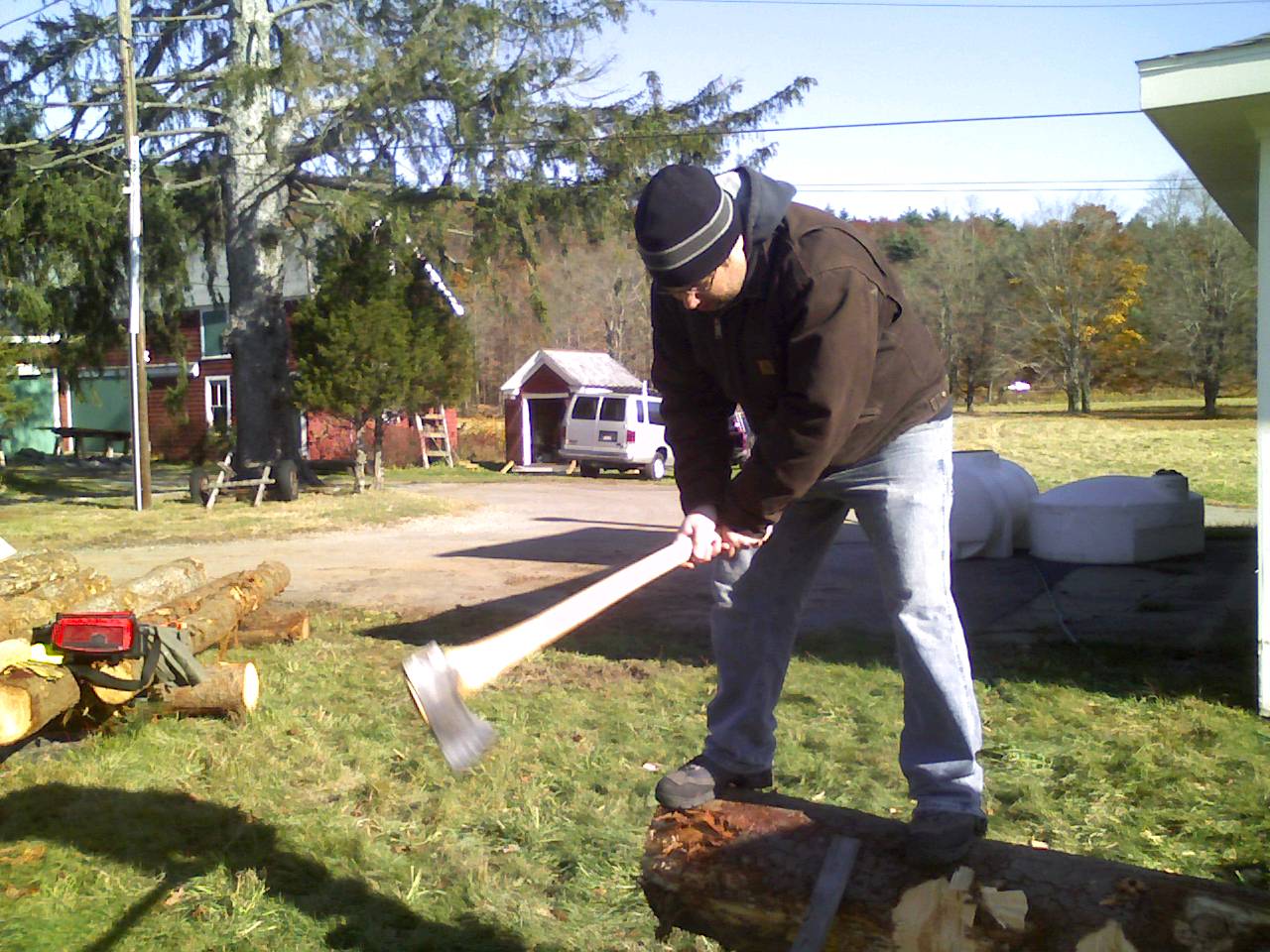

After juggling off the sides with the felling ax, we moved on to the hewing axe, the use of which could best be described as halfway between an ax and a chisel. It also makes for a great workout routine — but remember to let the ax head do the work — trying to swing as hard as you can reduces your accuracy and just wears you out faster — believe me the oak knows how tough it is.

Bill hewing the log into a square timber
Bill hewing the log into a square timber

After doing a lot of square rule work with timbers from a saw mill, we all had new appreciation for how much work went into many of our historical structures in terms of manual labor. Once we had the sills ready to go the next step was to join them together using scribe rule techniques. Scribing is an intricate process which will get you handy with your plumb bob, level and scribes real fast. You’ll also learn the term ‘bump and die’ meaning if you bump into my carefully placed timber as I am trying to scribe it, I will kill you. 🙂 Death threats aside it can be a very interesting and rewarding process. This technique is especially well suited for folks working with hand hewn timbers which can often be warped, bowed, tapering, etc. and one can see how it worked well during the times when hand hewn timber was the only option available.

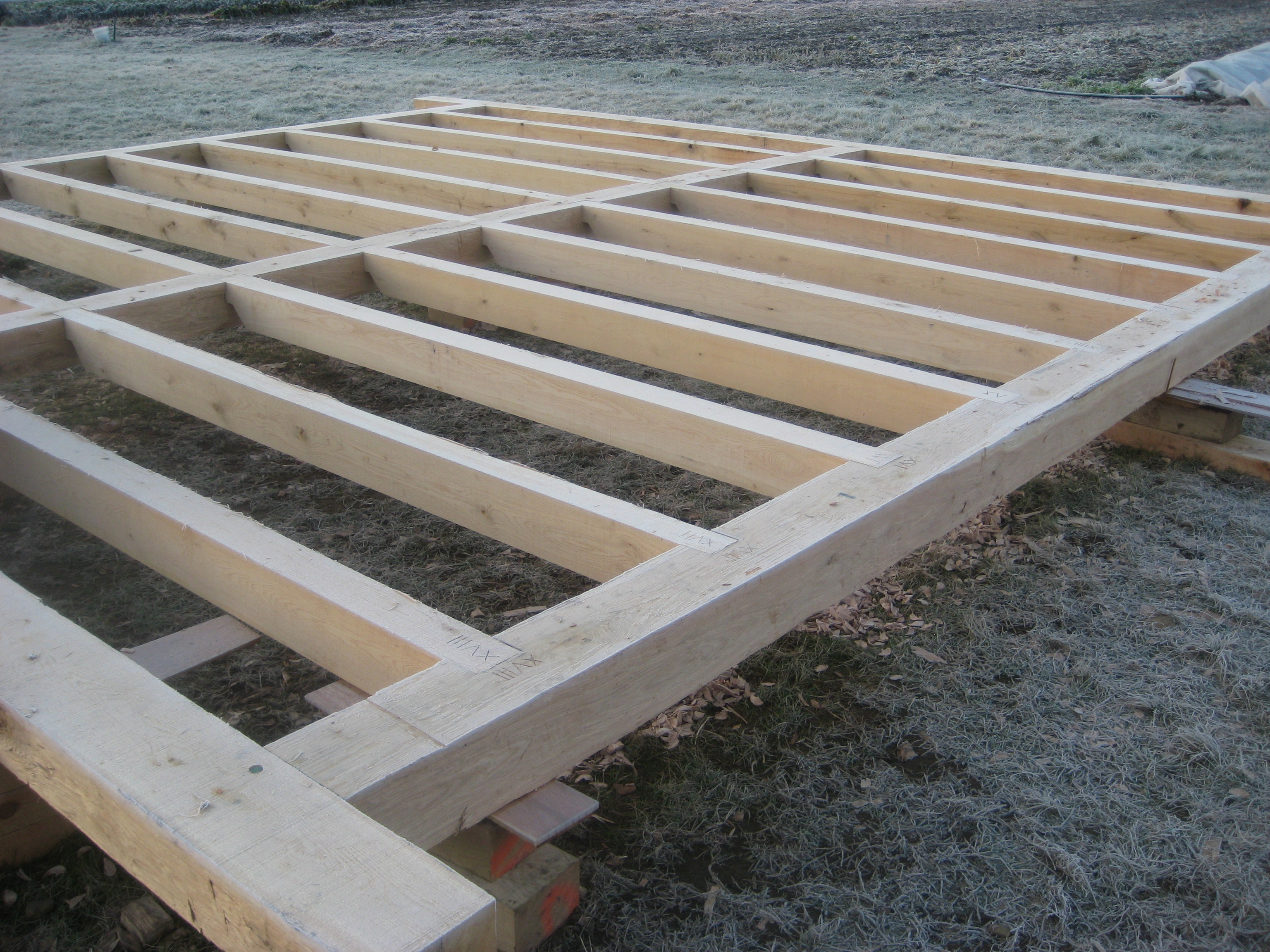

Completed floor system
Completed floor system

Once the flooring system was complete the next step was repairing/replacing the large oak gun-stock posts.

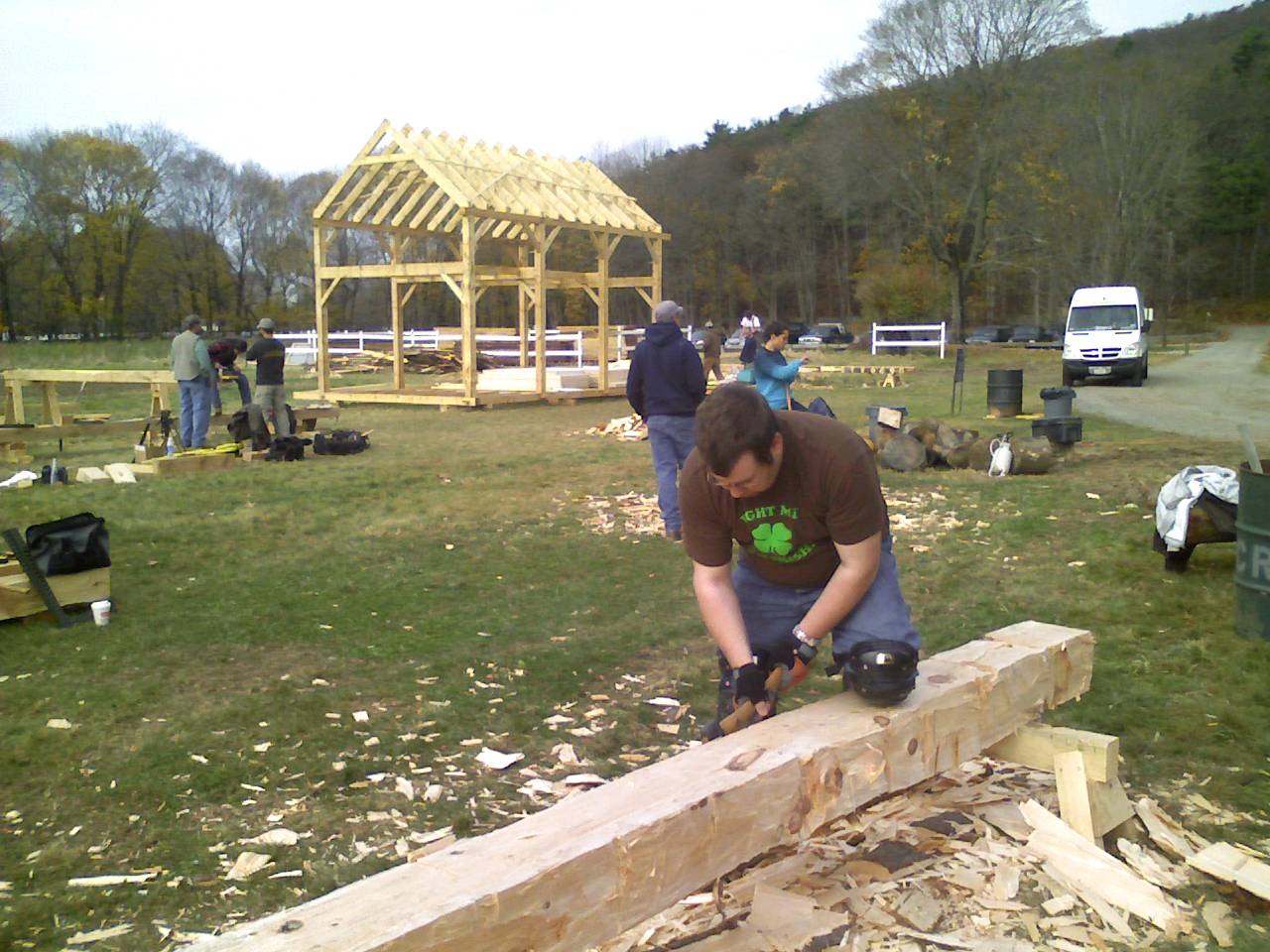

Lee working on hewing a gunstock post from oak
Lee working on hewing a gunstock post from oak

With our work done, the next year’s class took over and continue to work on the various pieces of this barn back in the trailer at the school.

Below is a slide show outlining in more detail the process:
